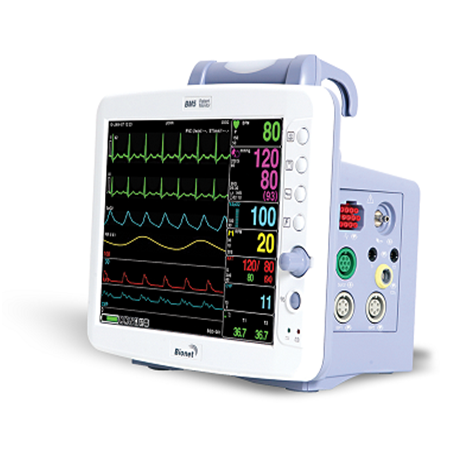

Bionet BM5 Enhanced Patient Monitor by Bionet

Specifications-

General

Display, Resolution 10.4” color TFT LCD, 800 x 600 pixels

Dimension, Weight 270(W) x 250(H) x 184.5(D) mm, Approx. 4.0kg

Trace 6 waveforms: 2*ECG, SpO2, RR or EtCO2, 2*IBP

Sweep speed : 6.25, 12.5, 25, 50 mm/sec

Indicators Categorized alarms (3 priority levels)

Visual alarm lamp handle

QRS beep & SpO2Pulse beep

Percent(%) SpO2 pitch tone

Battery status, Internal Power LED

Rotary knob

Interfaces Power supply: AC 100-240V(50/60Hz)

DC input connector : 18VDC, 2.5A

Defibrillator Sync. Output :

- Signal Level : 0 to 5V pulse

- Pulse width : 100 ± 10ms

LAN digital output for transferring data

Nurse Call System connection :

- 0.3A at 125 VAC - 1A at 24 VDC

External VGA monitor connection

DC output: 5VDC, 1A Max

Battery Rechargeable Li-ion battery,

1hour for continuous operation

Thermal Printer(Option) Speed : 25,50mm/sec, Paper width : 58mm

Data Storage 128hours trends

20cases of 10sec alarm waveform

Language English, French, Spanish, Italian, German, Chinese,

Russian, Czech, Polish, Turkish, Romanian, Portuguese

 Bulgarian, Hungarian, Korean

Performance

ECG

Leads Type 3-lead, 5-lead

Lead Selection 3-lead: I, II, III

5-lead: I, II, III, aVR, aVL, aVF, V

ECG waveforms 3-lead: 1 channel

5-lead: 2/7 channels

Heart Rate Range Adult: 30 to 300 bpm, Neonate/Pediatric: 30 - 350 bpm

Heart Rate Accuracy ± 1bpm or ± 1%, whichever is greater

Sweep speed 6.25, 12.5, 25, 50 mm/sec

Filter - Diagnosis : 0.05 to 150 Hz - Monitoring : 0.5 to 40 Hz

- Moderate : 0.5 to 25 Hz - Maximum : 5 to 25 Hz

S-T segment detection range -2.0 to 2.0 mV

Arrhythmia analysis ASYSTOLE, VTACH, VFIB, BIGEMINY, ACCVENT, COUPLET,

IRREGULAR, PAUSE, PVC, RONT, TRIGMINY, VBRADY, SHORTRUN

Pacemaker Detection Mode Indicator on waveform display (user selectable)

Protection Against electrosurgical interference and defibrillation

12 Channel ECG (Option)

Lead type 3-lead, 5-lead, 10-lead

Lead Selection 3-lead: I, II, III

5-lead: I, II, III, aVR, aVL, aVF, V

10-lead: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6

ECG waveforms 3-lead: 1 channel

5-lead: 2/7 channels

10-lead: 12 channels

Heart Rate Range Adult: 30 to 300bpm, Neonate/Pediatric: 30 to 350 bpm

Heart Rate Accuracy ± 1 bpm or ± 1%, whichever is greater

Sweep speed 6.25, 12.5, 25, 50 mm/sec

Filter -Diagnosis : 0.05 to 150 Hz - Monitoring : 0.5 to 40 Hz

- Moderate : 0.5 to 25 Hz - Maximum : 5 to 25 Hz

S-T segment detection range -2.0 to 2.0 mV

Arrhythmia analysis ASYSTOLE, VTACH, VFIB, BIGEMINY, ACCVENT, COUPLET, IRREGULAR, PAUSE, PVC, RONT, TRIGMINY, VBRADY, SHORTRUN

Diagnostic analysis of 120 kinds

Pacemaker Detection Mode Indicator on waveform display (user selectable)

Protection Against electrosurgical interference and defibrillation

Respirations

Method Thoracic impedance

Channel Selection RA-LA or RA-LL

Measurement range 5 to 120 Breath per minute

Accuracy ± 1breath per minute

Apnea alarm Yes

SpO2

Saturation range 0 to 100%

Saturation accuracy 70 to 100% ±2 digits, 0 to 69% unspecified Pulse rate range 30 to 254 bpm

Pulse rate accuracy ± 2 bpm

Bionet NIBP

Method Oscillometry

Operation mode- Manual/Automatic/Continuous

Pressure range- 0 to 300mmHg (Accuracy ±3mmHg) Measurement range -Adult Pressure : 20 to 260 mmHg Pediatric Pressure : 20 to 230 mmHg Neonate Pressure : 20 to 120 mmHg

Accuracy Mean error : less than ±5 mmHg

Standard deviation : less than 8mmHg

Bionet NIBP Method

Method-Oscillometry

Operation mode Manual/Automatic/Continuous

Temperature:

Channels 2

Measurement range 0 to 50? (32 to 122?)

Accuracy 25? to 50? : ±0.1?

0? to 24? : ±0.2?

Compatibility YSI Series 400 temperature probes

IBP(Option)

Channels 2

Measurement range -50 to 300mmHg

Accuracy <100mmHg : ±1mmHg

>=100mmHg : ±1% of reading

Pulse rate range 0 to 300bpm

Zero balancing Range : ±200mmHg

Accuracy : ±1mmHg

Drift : ±1mmHg over 24hours

Transducer sensitivity 5μV/mmHg

Sidestream EtCO2 - Respironics (Option)

Measurement range 0 to 150 mmHg, 0 to 19%

Accuracy 0 to 40mmHg ±2 mmHg, 41 to 70mmHg ±5% of reading,

71 to 100mmHg ±8% of reading, 101 to 150mmHg ±10% of reading

Respiration rate 2 to 150 breath per minute

Respiration accuracy ±1 breath per minute

Mainstream EtCO2 - Respironics (Option)

Measurement range 0 to 150 mmHg, 0 to 19%

Accuracy 0 to 40mmHg ±2 mmHg, 41 to 70mmHg ±5% of reading,

71 to 100mmHg ±8% of reading, 101 to 150mmHg ±10% of reading

Respiration rate 0 to 150 breath per minute

Respiration accuracy ±1 breath per minute

Pressure range 0 to 300mmHg (Accuracy ±3mmHg)

Safety pressure Adult : 300 mmHg Neonate : 150 mmHg Measurement Range Adult Pressure : 20 to 260 mmHg

 Pulse Rate : 30 to 220 BPM Pediatric Pressure : 20 to 160 mmHg

Pulse Rate : 30 to 220 BPM Neonate Pressure : 20 to 130 mmHg Pulse Rate : 30 to 220 BPM

Accuracy -Meets accuracy requirements of ANSI/AAMI SP10 : 1992 AND 2002

Accessory

Standard -5-lead patient cable 1ea

Electrodes 10ea

NIBP extension hose(3m) 1ea

Reusable adult cuff(25-35cm) 1ea

SpO2 extension cable(2m) 1ea

Reusable adult SpO2 probe 1ea DC adapter(18VDC, 2.5A) with power cord 1ea

Optional-

Paper roll(2 rolls are included in printer type)

Reusable temperature probe (Surface/Rectal)

IBP transducer set (Disposable/Reusable)

Sidestream EtCO2 module (Respironics)

Mainstream EtCO2 module (Respironics)

Sidestream EtCO2 airway adapter kit Mainstream EtCO2 airway adapter kit 3-Lead patient cable 10-Lead patient cable NIBP cuff(Reusable/Disposable)
